ito sputtering

ITO Target

ITO target is made up of a combination of indium oxide and tin oxide and serves as a crucial component in the production of ITO film. This film holds a significant position in the electronic information area and is used in a range of applications such as liquid crystal displays, organic light emitting diodes, touch screens and thin-film solar cells.


If you are in need of top-quality ITO targets for your projects, research, or industrial processes, Longhua is your go-to source. Contact us today to discuss your requirements.

Contact Us

Operating Principle of ITO Target

An ITO target is a combination of indium oxide and tin oxide and serves as a crucial raw material in the field of electronic information, specifically in the production of ITO film. Due to its superior electrical conductivity, optical transparency, and high stability, ITO film is employed in different applications such as liquid crystal displays, organic light emitting diodes, touch screens, and thin-film solar cells.


Japan and South Korea have enjoyed a monopoly in the ITO target market for some time now, particularly in high-end TFT applications. However, our company has achieved independent innovation by acquiring core technology for mass-producing high-end ITO target, with multiple intellectual property rights and patent achievements. Presently, our production capacity for ITO targets is approximately 300 tons per year and we provide a steady supply to all TFT production lines ranging from G2.5 to G10.5. The quality of our targets ranks top in China, reaching world-class standards. Our growing market share is a testament to the satisfaction of our clients in the industry.

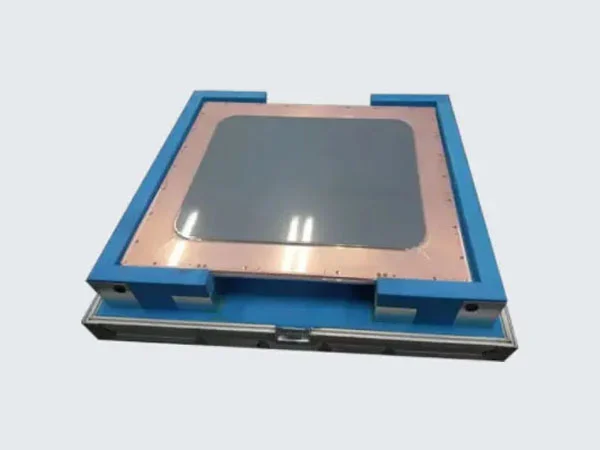

Planar ITO  Target

Item

Specifications

Major Components

In2O3:SnO2=90:10 (wt%), other ratios are subject to client requirements

Purity

4N

Relative Density.

≥ 99.5% (theoretical density 7.155 g/cm3)

Physical Specifications

Sheet shape or other shapes; the dimensions and deviations are subject to the agreement with client

One-sheet size up to 300 x 1400 x (6-12) mmt

Appearance Quality

Uniform appearance color; smooth surface, no cracks, no chipped edges or corners, and no foreign inclusions and pollutants

Internal Defects

No cracks or foreign matter inside

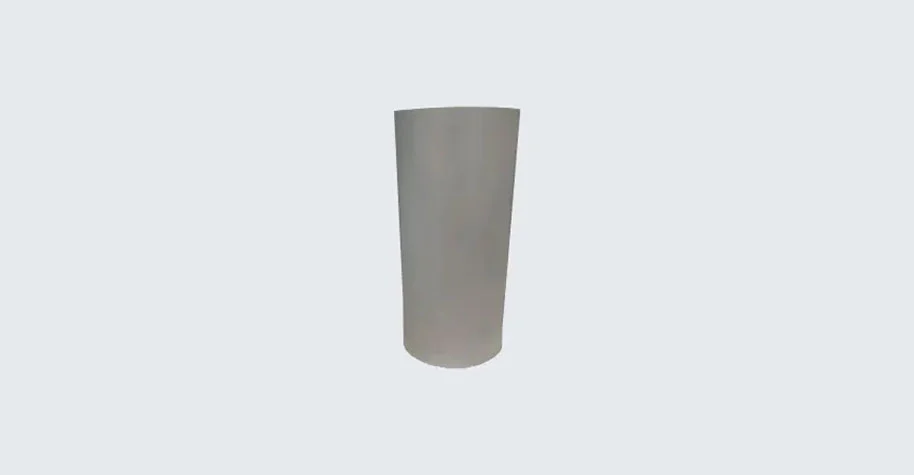

Rotatory ITO Target

Item

Specifications

Major Components

In2O3:SnO2=90:10 (wt%), other ratios are subject to client requirements

Purity

4N

Relative Density.

≥ 99.5% (theoretical density 7.155 g/cm3)

Physical Specifications

Tubular shape; the dimensions and deviations are subject to the agreement with client

One-segment size up to 900 mmL

Appearance Quality

Uniform appearance color; no cracks, no chipped edges or corners, and no foreign inclusions and pollutants

Internal Defects

No cracks or foreign matter inside

In addition, various kinds of powders can be customized, such as indium oxide powder, ITO powder, IZO powder and so on.


What Are the Benefits of Using ITO Target?

ITO targets are a popular choice for sputtering applications due to their unique properties and benefits. Indium tin oxide (ITO) is a transparent conducting oxide used to create transparent conductive coatings that offer high optical transparency and electrical conductivity. Some of the major benefits of using ITO targets include:


  • High optical transparency: ITO targets are highly transparent in the visible and near-infrared ranges of the electromagnetic spectrum, making them ideal for applications such as touchscreens and displays that require both electrical conductivity and optical transparency.

  • Good electrical conductivity: ITO targets have excellent electrical conductivity, allowing them to efficiently transfer electrical charge.

  • High stability: Due to their high melting point and excellent stability, ITO targets provide a stable surface for the deposition of thin films by sputtering.

  • Versatility: ITO targets are compatible with a wide range of substrate materials and can be deposited on flat or curved surfaces, making them a versatile option for various applications.

  • Affordability: ITO targets are relatively affordable compared to other transparent conductive coatings, making them an economical choice for many applications.


Overall, ITO targets offer an attractive combination of optical transparency, electrical conductivity, stability, versatility, and affordability, making them a popular choice for sputtering applications.


If you have any needs in ITO target products, don't hesitate to reach out to Longhua. Our expert team is ready to assist you with your inquiries, provide quotes, and guide you through the process of acquiring the perfect ITO targets for your applications.
